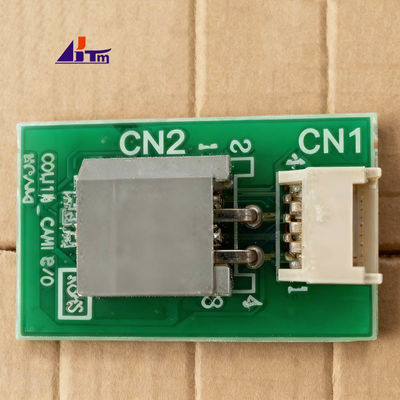

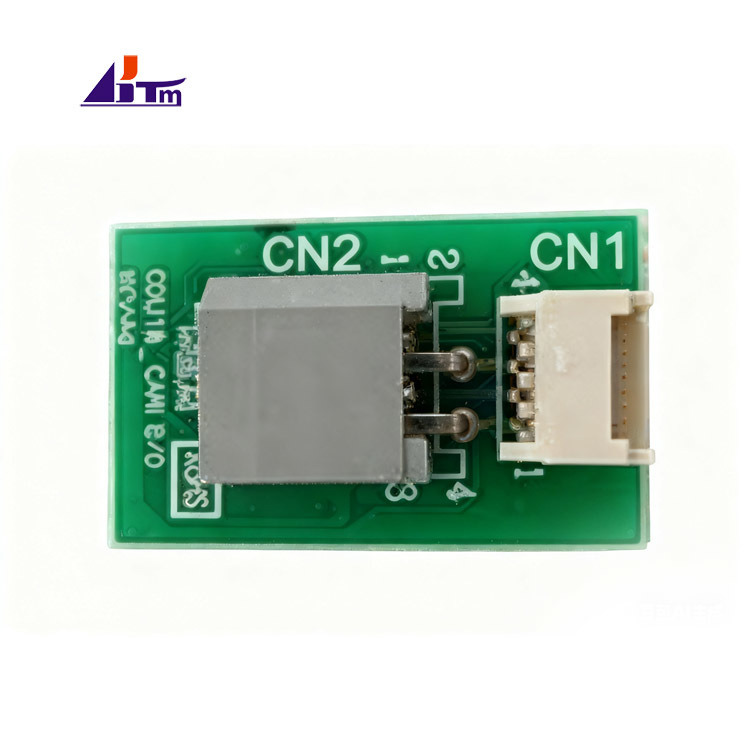

S7760000069 Interface Board for FFC Cable Hyosung CDU10 HCDU 7310000709-15

The S7760000069 Interface Board is a specialized connection and signal transmission component tailored for the S7310000709 Hyosung 5600 5600T MX8300T MX 7800T CDU10 ATM’s HCDU Main Body Assembly. It works with the supporting FFC (Flexible Flat Cable) to serve as a "communication bridge" between the HCDU’s mechanical execution components and the ATM’s main control system. Its stable operation is vital to the coordinated work of all parts of the cash dispenser and the accurate transmission of operational signals. Here is a detailed breakdown:

This interface board is customized in line with Hyosung's OEM technical specifications for the CDU10 model. Unlike independent control boards, its core value lies in signal conversion and interface adaptation. It connects key components of the S7310000709 HCDU main body—such as the S5640000128 bill feed stopper motor, rotor gears, and bill-detecting sensors—to the ATM’s central control unit. The matching FFC cable is characterized by its thinness, flexibility, and high transmission efficiency, which fits the compact internal space of the HCDU and ensures stable signal transmission without being affected by the mechanical movement of the dispenser. Together, they eliminate signal mismatches or transmission delays between different components, ensuring the HCDU can accurately execute cash-dispensing, counting, and error-correcting commands.

Tiger Spare Parts Co., Ltd., founded in 1998, is a professional ATM parts solution provider with over 26 years of experience. We supply parts for Diebold Nixdorf (DN), NCR, Wincor, Hyosung, Glory, NMD, GRG, Fujitsu, Hitachi, OKI, Genmega, MEI and other major brands, integrating R&D, production, sales and service. Equipped with mold room, injection molding and QC departments, we ensure high-quality products at competitive prices. Certified to ISO9001 and supported by ERP systems, we look forward to cooperating with you.

S7760000069 Interface Board, Hyosung CDU10 HCDU Interface Board, S7310000709 FFC Cable Interface Board, Hyosung ATM Dispenser Signal Interface Board, HCDU Dedicated Interface Board with FFC.
